Equipment Support Platforms, Stairs & Walkways
Structural steel access — platforms, stairs and walkways designed around your equipment layout.
Lozzar Process designs and supplies structural steel platforms, access stairs and safety walkways as part of complete process plant packages or as standalone fabrication. All structural steelwork is designed to Eurocode standards and EN 1090-2, with CE marking included as standard. Finishes include hot-dip galvanising, epoxy primer and topcoat, or combination systems depending on environment.
Design and Construction Standards
Equipment platforms are designed to carry dead loads (equipment weight) plus live loads (maintenance personnel, tools) in accordance with Eurocode 1 (EN 1991). The primary frame is typically hot-rolled I-section (HEA/HEB) or RHS columns and beams. Secondary framing uses lighter IPE or RHS members. Grating panels (bar grating or expanded metal) form the walking surface.
Access stairs are designed to EN ISO 14122 standards for permanent means of access to machinery. Stair angles are typically 45° for industrial access (as opposed to 60° for ladders or 30° for building stairs). Handrails and toe boards are included as standard.
Walkways and access bridges connect platforms or allow maintenance access around large equipment such as rotary dryers, evaporators or storage tanks. Where platforms need to be relocated for maintenance access, bolted connections are used throughout — no site welding required.
All structural drawings include material certificates, weld procedure qualifications, and a CE Declaration of Performance under EN 1090-1 (execution standard EN 1090-2, Execution Class EXC2 as standard).
Quick Reference
Technical Specifications
All parameters are indicative ranges. Final sizing is determined by process simulation based on your specific material and throughput requirements.
Design Parameters
| Parameter | Value / Range |
|---|---|
| Design standard | Eurocode (EN 1990–1993) |
| Execution standard | EN 1090-2, EXC2 |
| Live load (walkways) | 3 kN/m² (standard) |
| Stair angle | 45° (industrial standard) |
| Handrail height | 1,100 mm |
| Grating panel | 30×3 bar grating or checker plate |
| Surface finish | Hot-dip galv. (EN ISO 1461) or epoxy paint |
Need a technical pre-sizing? Send us your material data sheet, moisture content, required throughput and energy source — we return a technical sizing with drum dimensions and energy balance within 2 business days.
→ Send process data on WhatsAppTypical Applications
Reference data from industrial installations. Actual values depend on feed consistency, particle size distribution and required product quality.
| Material | Inlet moisture | Outlet moisture | Particle size | Gas temp. | Industry |
|---|---|---|---|---|---|
| Dryer access platform | — | — | — | — | Drying plant |
| Evaporator maintenance walkway | — | — | — | — | Chemical plant |
| Filter plant access stair | — | — | — | — | Mining |
Don't see your material? Send us your process data and we'll provide material-specific sizing.
When to Order Platforms with Equipment
Equipment is elevated (>1.5 m above grade)
Platform + access stair is required by machinery safety directives
Notes
Not sure which dryer is right for your process? We'll review your specifications and recommend the optimal solution.
Ask a technical question →FAQ
Both. Most platform and stair fabrication is ordered together with the process equipment as a package. We also accept standalone structural steel fabrication orders.

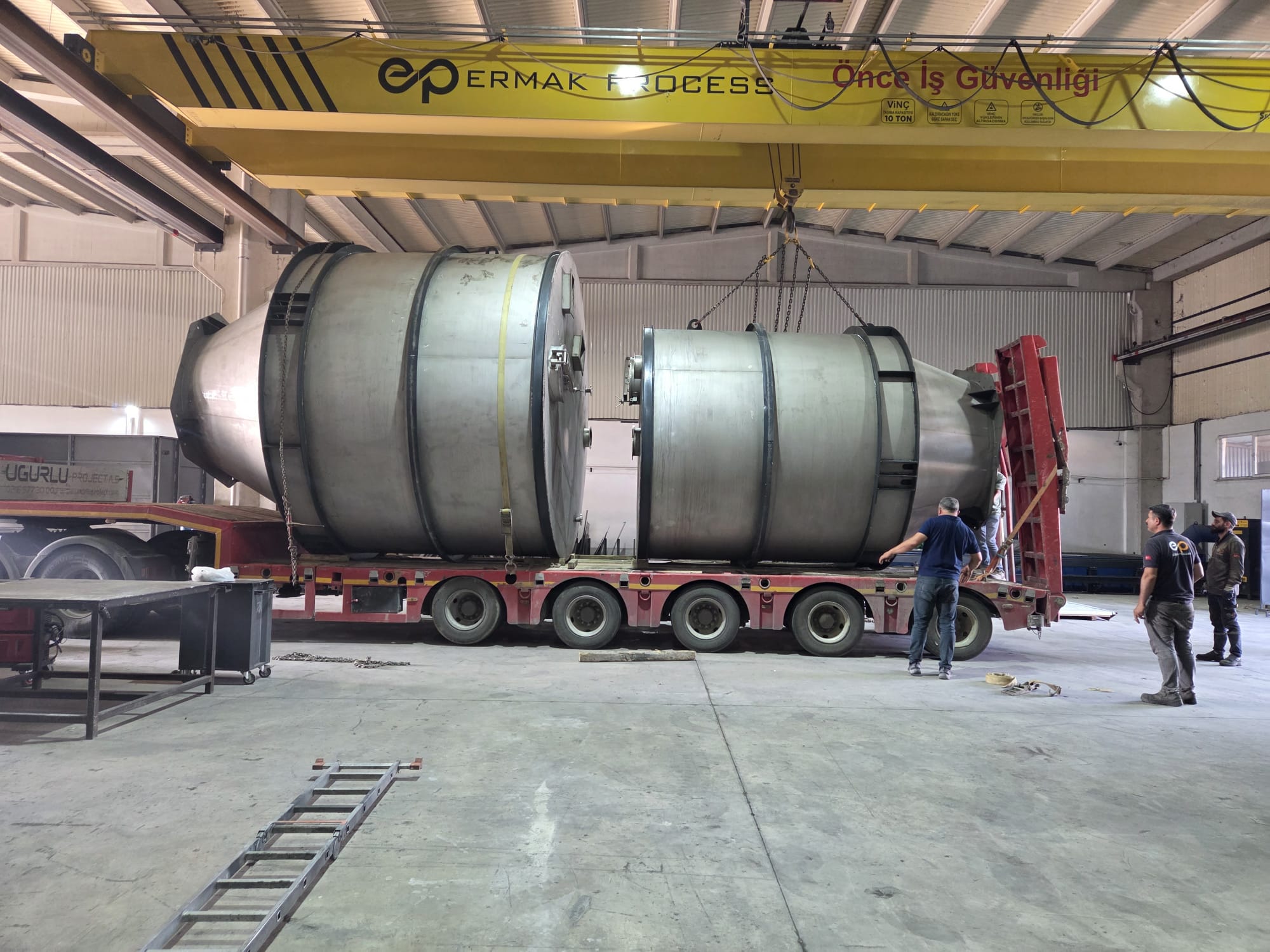

From Our Projects
Request a Quote for This Equipment
Include in your enquiry:
- →Equipment type and dimensions
- →Required platform elevation and area
- →Access point locations
- →Environmental conditions (indoor/outdoor, corrosion class)
- →Preferred finish (galvanised / painted)
